Clock Configuration





Objective

Configure your Vector as a MASTER or SLAVE to an external device.




Internal Clock / Sending to External Devices

  • On the GLOBAL page use E4 to edit the SYNC setting to reflect your chosen clock source.
  • Select INT (which means INTERNAL).
  • The Vector wil clock itself and allow you to output the CLOCK to an external device via:
    • RUN and RESET CV
    • TRS MIDI
    • USB A or USB B
    • JE MIDI
    • JE Trigger Outs

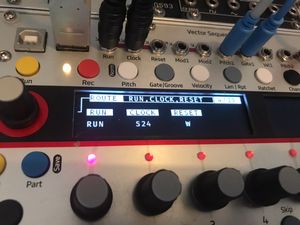

  • Go to GLOBAL, hit NEXT twice to get to ROUTE and use E9 to progress to RUN, CLOCK, RESET 4/10
  • Adjust your clock rate using E2, as well as your chosen reset increment.
  • Remember to configure any settings on your external CLOCK destination device.
  • Note: REC THRU mode does not work with any other clock setting.  It requires an INTERNAL clock to be running.






External Clock / Receiving from External Device

  • Any Clock setting other than INTERNAL requires an external clock source to be connected via USB, MIDI or CV.
  • You can select an external clock source on the GLOBAL page using E4
  • If you do not have a source connected, and you press RUN, then nothing will happen.
  • The Vector will receive clock signals via your chosen input.
  • If you go the ROUTE - RUN, CLOCK, RESET 4/10 page, RUN and CLOCK will be greyed out as they apply to INTERNAL clock only.
  • You will still be able to configure a RESET variable using E3.

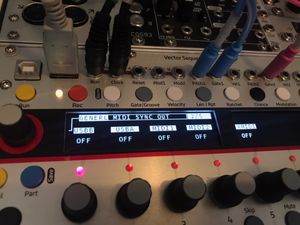

Enable MIDI SYNC OUTPUT

  • Click Global once
  • Use E9 to dial to MIDI SYNC OUT 2/5
  • Use E1 to E5 to turn MIDI Sync ON or OFF for your target output
